Advanced PSU Kit



What you get:

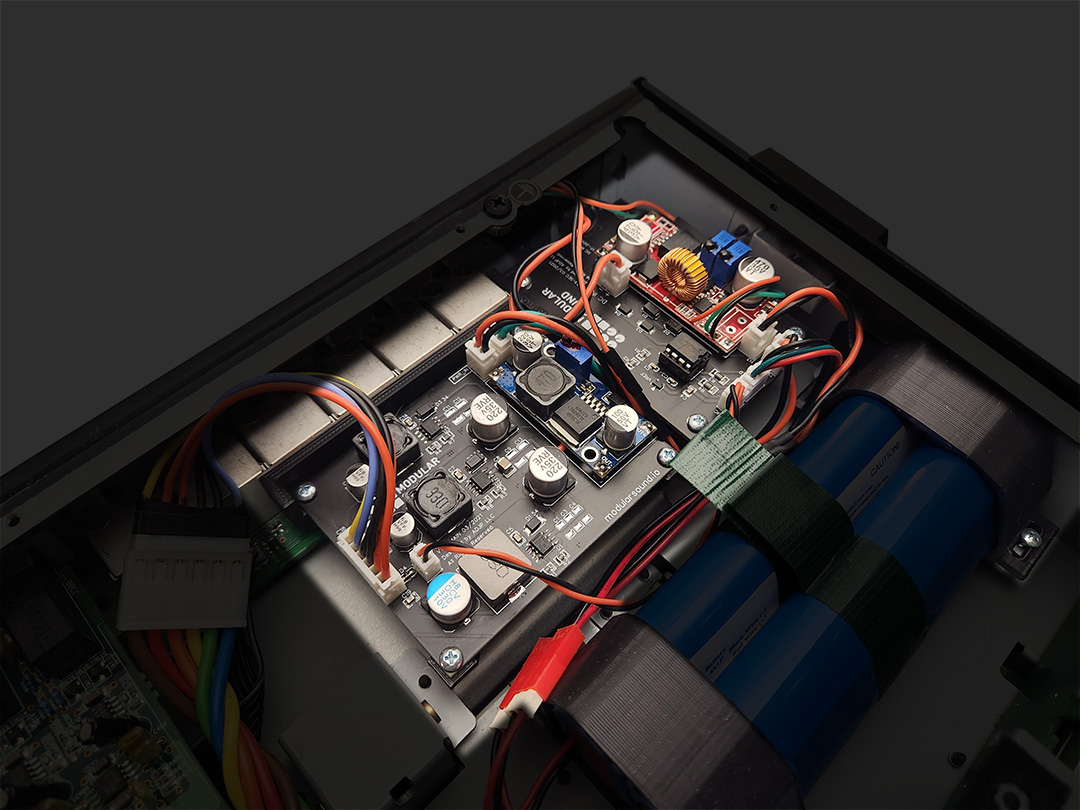

- Boosted PSU Board
- Charging Circuit
- Battery Status LED
- Power Port
- Switch
- Wiring Kit
- Mounting Kit
- Battery Mount (optional)
Batteries and MPC not included. Product may vary depending on the MPC model. Please read product description completely before proceeding.
SKU: N/A Categories: ,


**Orders are estimated to be shipped within 1 week from purchase date.**

Note: Batteries are not included and need to be purchased separately. Other than that, this kit provides you with everything else you need to turn your MPC into a battery-powered beat machine! Using one battery pack will give about 3 hours of run-time, while combining two battery packs will get you about 6 hours.

Compatible Battery Packs:
- FIVO FBL-12 (affiliate link)
- Sicimly V50 (affiliate link)
- Cameron Sino CS-FEX750VX (affiliate link)

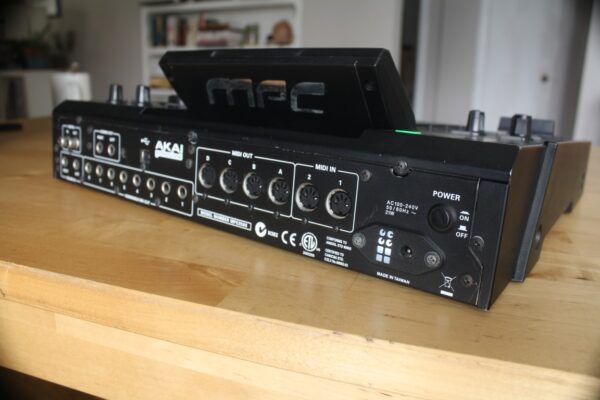

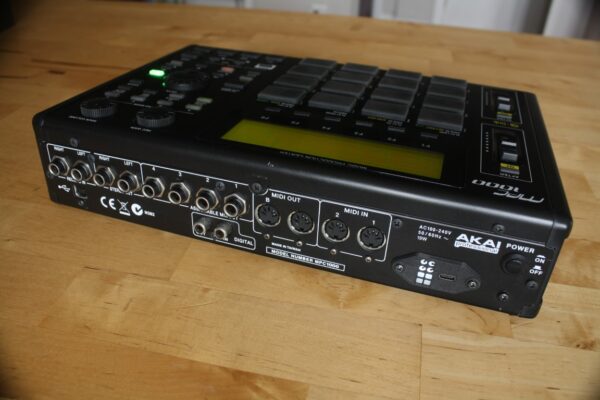

Power Port:

For the Barrel Jack option, power your MPC with any +45W 19-20V, 5.5 x 2.1mm, center-positive barrel jack adapter. The stock power adapter that comes with the newer generation MPCs will work. (i.e. MPC Live, MPC X, MPC One, etc.)

For the USB-C PD (Power Delivery) option, power your MPC with any +45W USB-C charger (or power bank) with 20V Power Delivery. For example, the kind used to charge and power laptops. A 45W USB-C PD adapter will be marked with “20V, 2.25A” under “Output.” A 90W adapter will be marked with “20V, 4.5A.” And so on. Do not try using a standard cell phone charger with a USB-C cable. It will not work.

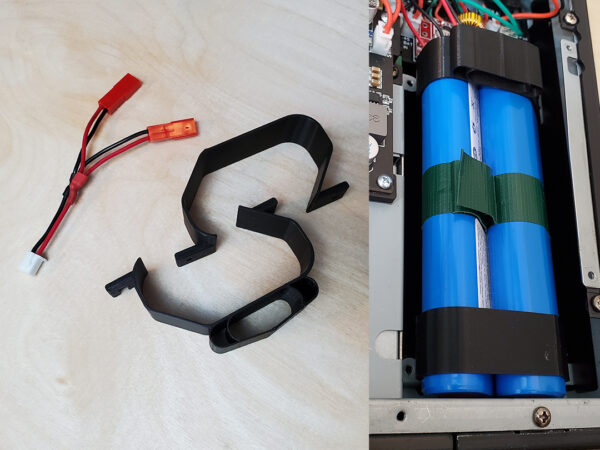

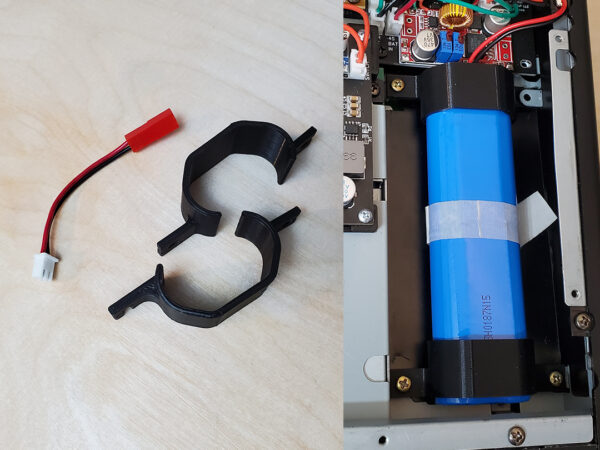

Battery Type and Mount:

The battery mount options (Single, Double) are for the compatible battery packs listed above, or equivalent. The batteries listed are designed to work with the following iLife vacuums: V3S Pro, V5S Pro, V8S. If a battery pack you intend to use is not in the list above, make sure it works with the vacuums mentioned.

The option “None” is included for the DIYer. This is specifically for people who can wire and build their own battery packs.


DISCLAIMER: This is a self-install kit, you are proceeding at your own risk. Working with electricity can be dangerous. Please ensure you know proper safety and handling of electronics. By continuing with your purchase,, ADJP LLC, is not responsible or liable for any damages or injuries that may occur. Included items contain the original “Modular Sound” branding.
